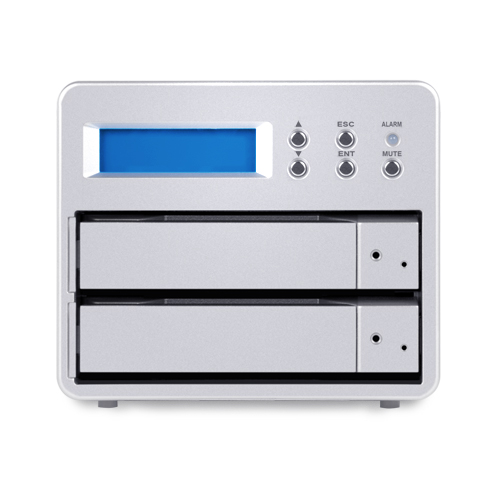

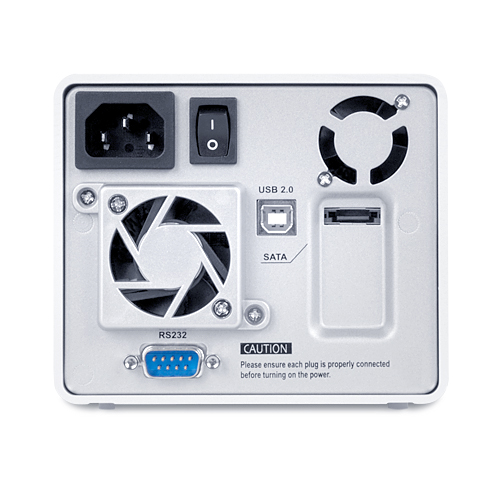

MobileSTOR MS2UT - 2 Bay SATA to eSATA/USB 2.0 RAID 0 / RAID 1 Storage Enclosure

The MobileSTOR MS2UT series is a 2bay external RAID solution designed for video editing and data storage. With simplicity and flexibly in mind, the MS2UT is equipped with 2 Hot-Swappable 3.5” lockable drive trays and both USB 2.0 and eSATA host interfaces. Utilizing cutting edge Serial-ATA HDD technology, the MS2UT is guaranteed to provide unparallel performance to meet most data intensive demands. Supporting RAID 0 or RAID 1, enclosed in stylish aluminum housing, the MS2UT will allow you to easily choose between ultimate performance and high redundancy.

Unique Features

• Hardware RAID design, supporting RAID 0, 1.
• Host interface: 1394b & USB 2.0 Dual Options.
• Drive interface: 2x 3.5" SATA I/SATA II HDD.
• Compact and stylish aluminum design.
• Supports SATA I (1.5Gbps) and SATA II (3.0Gbps) hard drives.
• Support latest 1TB hard drive. Up to 2TB storage capacity.
• Hot swappable trays which are compatible with various hard drives.
• Data auto-rebuilding.
• LCD display.
• Hard drive, Fan and temperature failure detectors to ensure system stability.
• Windows-based GUI software.
• Standard interface; no extra drivers required.


Model	MS2UT
Form Factor	Cube
HDD Trays	2 Hot-Swappable 3.5"
RAID Level	0, 1
Maximum Capacity	2TB
Auto Rebuilding	Yes
Hot-Spare	N/A
Host Interface & Transfer Rate	USB 2.0 (480Mbps) & 1394b (800Mbps)
Drive Interface	SATA I / SATA II
Cooling Fan	1.6" Ball Bearing
Power Supply	70W (110V~240V Auto Switching)
Control Interface	LCD Panel
Status Indicators	Alarm LED, Activity LED
Dimension (in)	4.8"W x 7.9"D x 4"H
Weight (lb)	3.7
Safety Regulations	CE, FCC, UL
Limited Watrranty	1 Years

Model	MS2UT	MS2UT05	MS2UT1T	MS2UT15	MS2UT2T
Hard Drive	No HDD  Bundle	250GB  SATA II *2	500GB  SATA II * 2	750GB  SATA II * 2	1TB  SATA II * 2
Total Storage Size	N/A	500GB	1000GB = 1TB	1500GB = 1.5TB	2TB

Note: Please allow 1 day for hard drive installation and testing.
Note: All hard drive bundles are pre-installed and tested before shipment.
